Lexus GX460 | 2014-2023 | Hidden Winch Mount

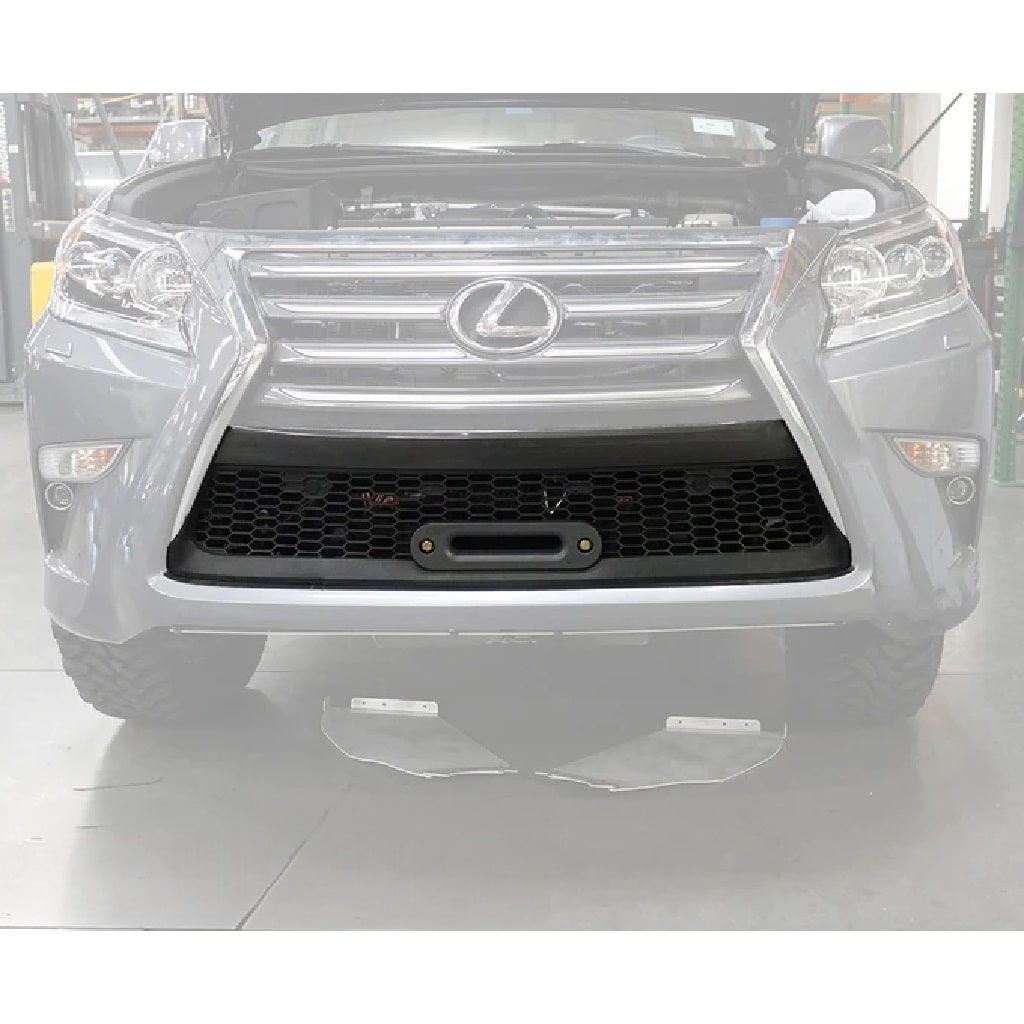

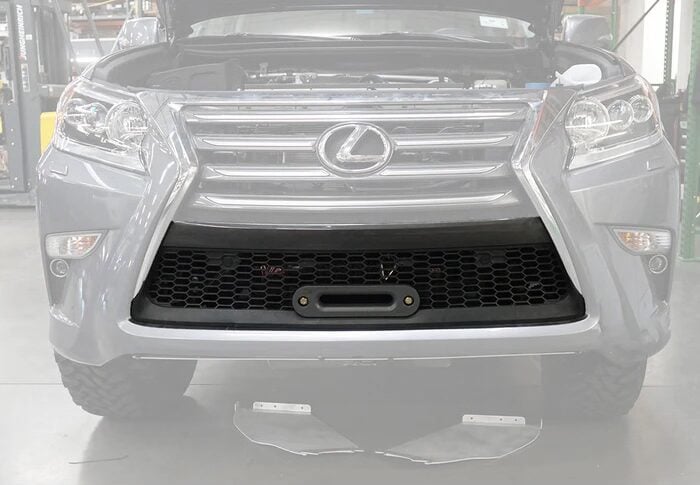

This Winch Mount allows Lexus GX460 owners to mount a Warn Industries VR EVO or Zeon Series Winch while maintaining the OEM front bumper.

WHAT’S INCLUDED

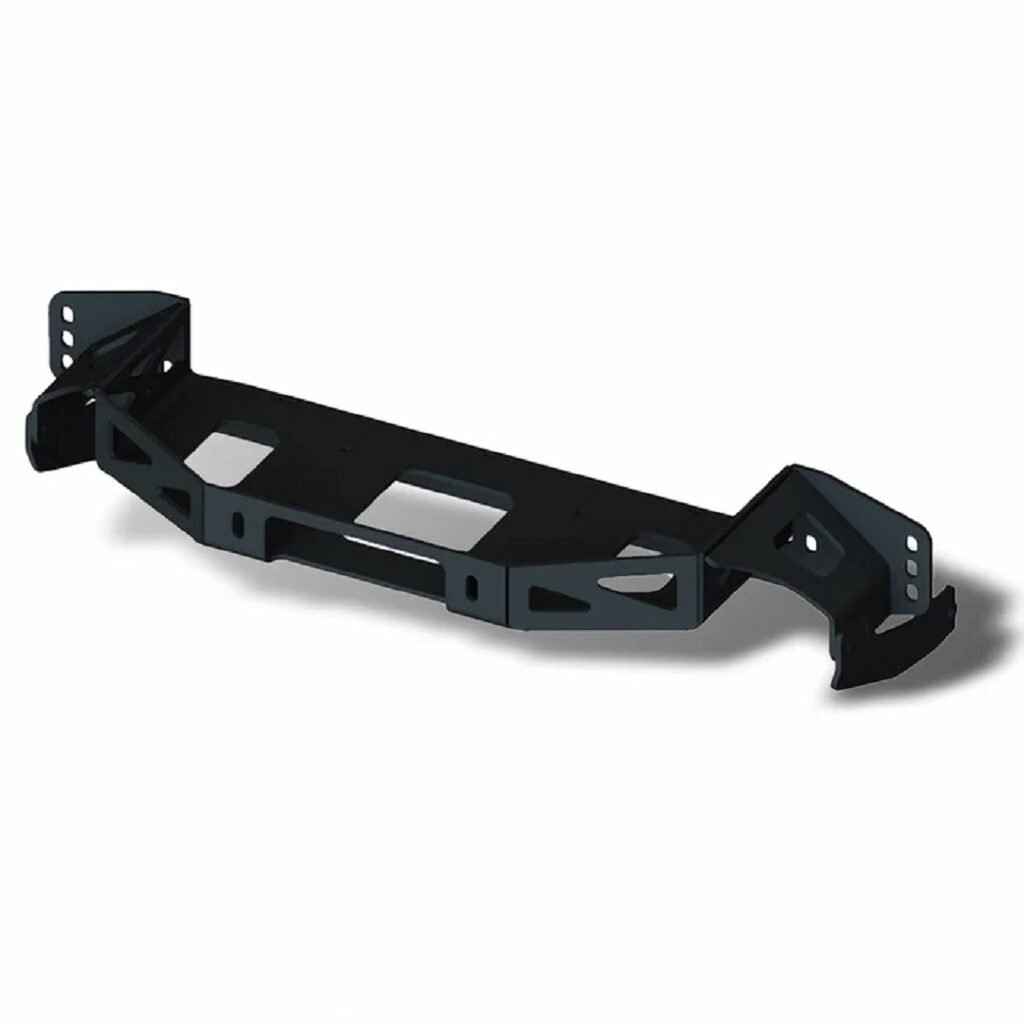

• Main Winch Mount
• Lower Support Brackets
• Lower Bumper Bracket
• Hardware Package
• Hawse and Roller Fairlead Cut Template

KEY FEATURES

• 3D CAD designed, quality, fit, and finish
• Designed to work with Warn VR EVO and ZEON Series winches
• ½” thick steel plate support brackets with integrated recovery points
• Triangulated mounting locations create unmatched strength and durability
• ¼” thick steel plate side load brackets strengthen the support brackets by triangulating and including another frame attachment location
• ¼” thick steel plate construction for durability
• Included lower bumper support
• Made in the USA
• Weighs 45lbs with hardware  (Without the skid plate set)

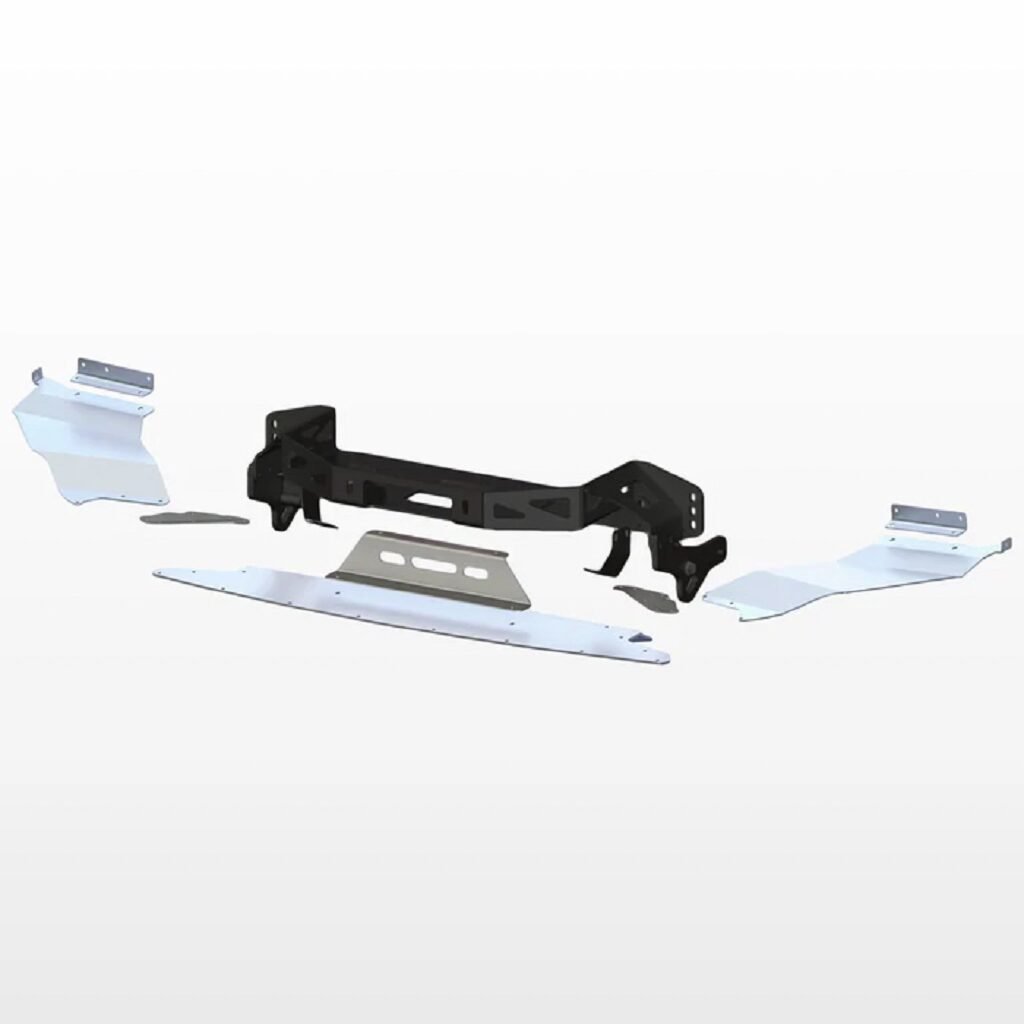

SKID PLATE OPTION

• 3D CAD designed
• Seamless integration with our Hidden Winch Mount
• The Main Skid Plate is constructed from 3/16” Aluminum and mounts to our hidden winch mount using the skid plate supports
• Our Skid Plate Kit is designed to fit with RCI Style Engine Skid Plate (does not fit OEM Skid)
• Drilling and cutting of the factory bumper and fender liner will be required for skid plate setup
• Skid Plate system increases the front bumper’s ground clearance by approximately 4”.
• The Main Skid Plate secures to the sides of the bumper and fender liner.
• Driver and passenger side skid plates are constructed from ⅛” Aluminum and supports the sides of the bumper and fender liner.

FITMENT DETAILS:

• VEHICLE FITMENT: 2014-2023 Lexus GX460
• WINCH FITMENT: Fits Warn Zeon Series and Warn VR EVO Series Winches
• Slight modification and trimming to the stock bumper plastic is required to allow access to the winch line and fairlead

WINCH FITMENT:

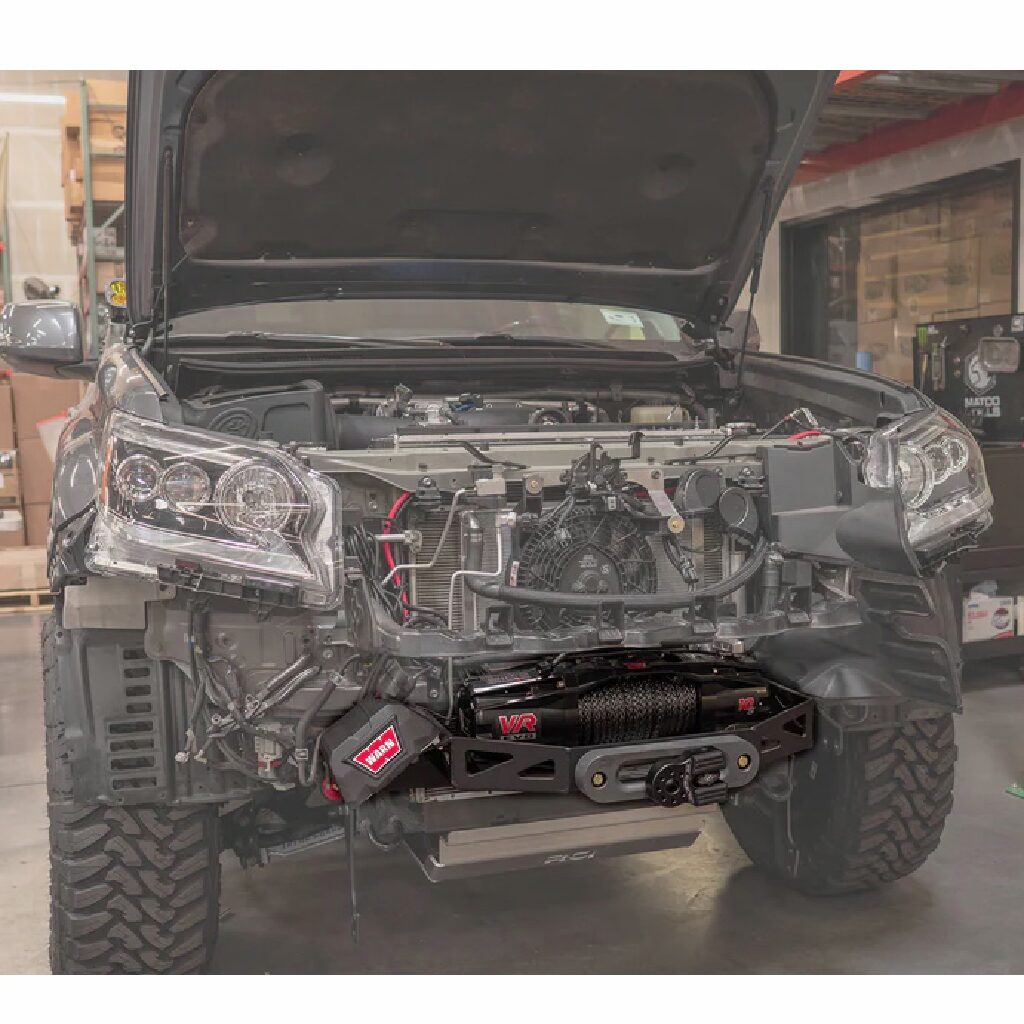

The winch mount has been designed to fit the Warn Zeon 10 Platinum Series and Warn VR EVO Series Winches of winches. Winches with a manual clutch will not have the ability to “free-spool” unless a device is built to access the winch’s clutch release.

Relocating the winch control box on the Zeon series is necessary due to clearance issues. We have an optional kit that includes all the wiring and hardware needed to relocate the Zeon series control box. Relocating the control box is possible without our kit; however, the end user will need to source their own wires and hardware.
