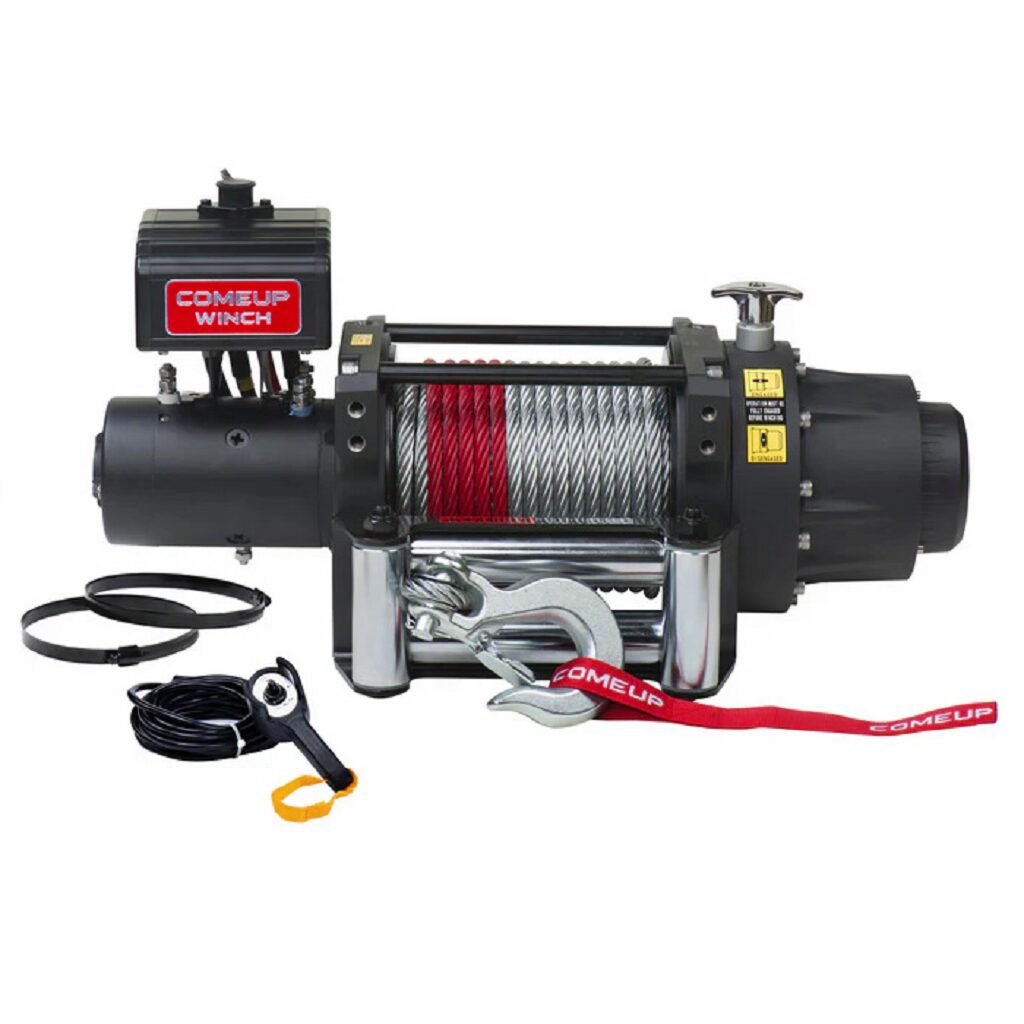

ComeUp 12v Winch | SEAL GEN2 16.5 | IWRC Rope
ComeUp_12v_Winch_SEAL_GEN2_16.5_B
ComeUp_12v_Winch_SEAL_GEN2_16.5_C
ComeUp_12v_Winch_SEAL_GEN2_16.5_A
ComeUp_12v_Winch_SEAL_GEN2_16.5_B
ComeUp_12v_Winch_SEAL_GEN2_16.5_C

ComeUp 12v Winch | SEAL GEN2 16.5 | IWRC Rope

$1,990.00
Specifications
  • Rated Line Pull 20,000 lb single line
  • Motor 5,220 w / 7.0 hp 12V series wound
  • Gear Ratio 3-stage planetary 343:1
  • Clutch (freespooling) Rotating ring gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum die cast housings with steel drum
  • Drum Size 3.5″ x 8″L
  • Control Waterproof wired remote with thermometric indicator LED w/ 17โ€™ (5 m) cord
  • Rope Type 6 x 29 – IWRC
  • Rope size 1/2″ x 59โ€™ (12.7 mm x 18 m )

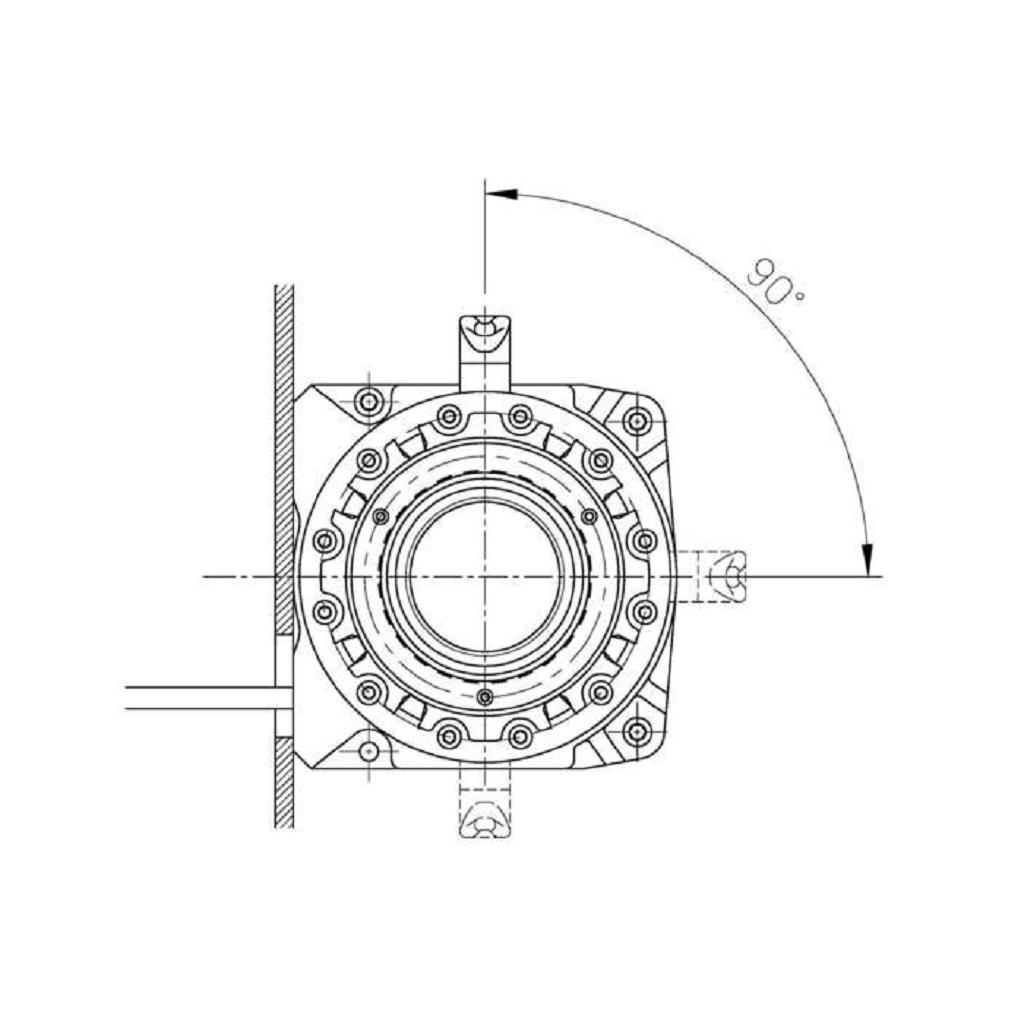

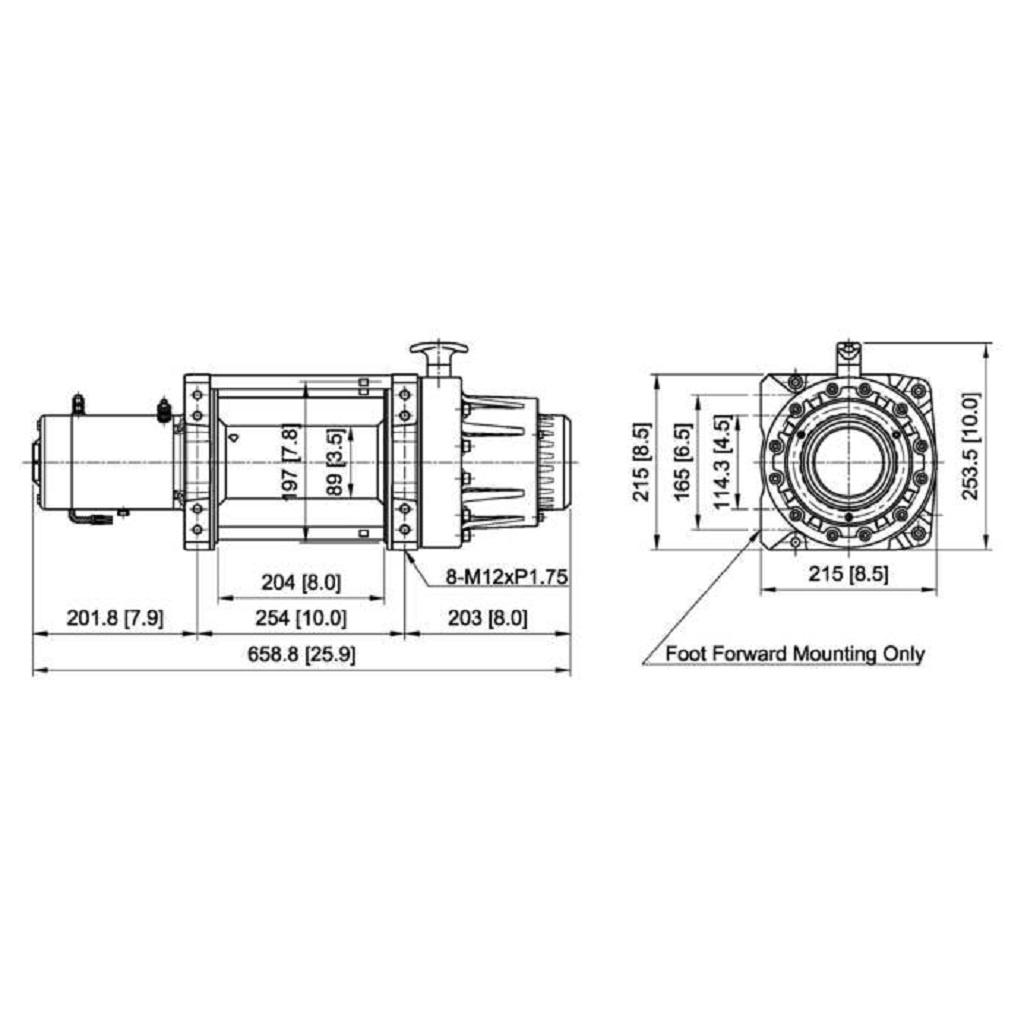

  • Mounting Bolt Pattern 10″ x 4.5″ (254 x 114 mm), 10″ x 6.5″ (254 x 165 mm)
  • Winch Weight 132 lb.
  • Gross Weight 169.7 lb.
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 29.1″ x 10.6″ x 19.5″
Guaranteed Safe Checkout
Image Safe Checkout
  • Worldwide shipping & Pick-Up and Drop-Off in upper 48 USA states
SKU: 295620 Categories: , , , Brand:

ComeUp 12v Winch | SEAL GEN2 16.5 | IWRC Rope

Comeup 12V Winch. Built for strength and reliability, Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most

Part Number 295620



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull (kg / lb.)ย  ย  Line Speed, (mpm / fpm)ย  ย  ย  ย  Amp. Draw, A

No loadย  ย  ย  ย  ย  ย  ย  ย 5.5 / 18.0ย ย ย ย ย ย ย ย ย ย ย  50

1,814 / 4,000ย ย ย ย  2.9 / 9.5ย ย ย ย ย ย ย ย ย ย ย ย ย ย  90

3,629 / 8,000ย ย ย ย  2.4 / 7.9ย ย ย ย ย ย ย ย ย ย ย ย ย ย  180

4,536 / 10,000ย  1.8 / 5.9ย ย ย ย ย ย ย ย ย ย ย ย ย ย  230

7,484 / 16,500ย  1.4 / 4.6ย ย ย ย ย ย ย ย ย ย ย ย ย ย  355



Line Pull and Rope Capacity:

Layer of Ropeย ย ย ย  Pull by layer (kg / lb.)ย  ย  ย  ย  ย  Total Rope on the Drum (m / ft.)

1stย ย ย ย ย ย ย ย ย  7,484 / 16,500ย  5.6 / 18.4

2ndย ย ย ย ย ย ย  6,125 / 13,503ย  12.4 / 40.7

3rdย ย ย ย ย ย ย ย  5,184 / 11,429ย  20.4 / 66.9

4thย ย ย ย ย ย ย ย  4,494 / 9,908ย ย ย ย  27.4 / 90.0





Comeup 12V Automotive Winch
Built for strength and reliability, the Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most. Ideal for off-road vehicles, trucks, and SUVs, this winch features a heavy-duty motor, rugged construction, and precise control for smooth, safe operation. Whether you’re stuck in mud, snow, or rocky terrain, the Comeup winch ensures youโ€™re always ready to pull through.





Prop 65 Warning: Cancer and Reproductive Harm โ€“ www.P65Warnings.ca.gov

Weight 150 lbs
Dimensions 27 × 11 × 16 in
