ComeUp 12v Winch | SEAL GEN2 20.0 | Steel cable

$2,220.00
Specifications
  • Rated Line Pull 20,000 lb. single line
  • Motor 5,220 w / 7.0 hp 12V series wound
  • Gear Ratio 3-stage planetary 343:1
  • Clutch (freespooling) Rotating ring gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum die cast housings with steel drum
  • Drum Size 3.5″ x 8″L
  • Control Both built-in digital signal two way wireless remote control and waterproof wired remote with thermometric indicator LED w/ 17’ (5 m) cord
  • Cable Type 6 x 29 – IWRC
  • Cable Size 9/16″ x 55′

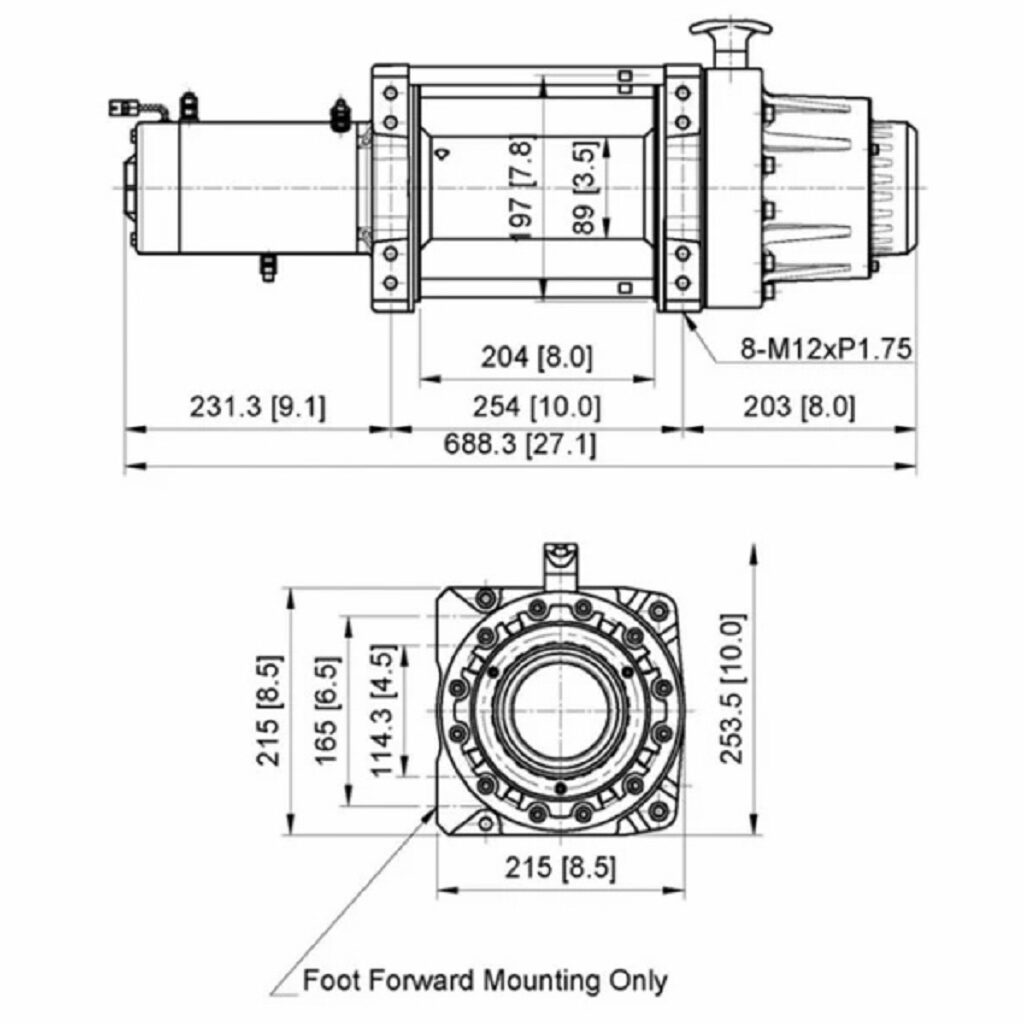

  • Mounting Bolt Pattern 10″ x 4.5″ (254 x 114 mm), 10″ x 6.5″ (254 x 165 mm)
  • Winch Weight 132 lb.
  • Gross Weight 169.7 lb.
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 29.1″ x 10.6″ x 19.5″
Guaranteed Safe Checkout
Image Safe Checkout
  • Worldwide shipping & Pick-Up and Drop-Off in upper 48 USA states
SKU: 295230 Categories: , , , Brand:

ComeUp 12v Winch | SEAL GEN2 20.0 | Steel cable

Comeup 12V Winch. Built for strength and reliability, Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most

Part Number 295230



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull (kg / lb.)    Line Speed, (mpm / fpm)        Amp. Draw, A

No load               4.5 / 14.8             60

1,814 / 4,000     2.1 / 6.9               150

3,629 / 8,000     1.8 / 5.9              190

4,536 / 10,000  1.4 / 4.6               260

7,484 / 16,500  1.1 / 3.6                340

9,072 / 20,000  0.4 / 1.3              410



Line Pull and Rope Capacity:

Layer of Rope     Pull by layer (kg / lb.)          Total Rope on the Drum (m / ft.)

1st          9,072 / 20,000  5.0 / 16.4

2nd        7,259 / 16,003  11.2 / 36.7

3rd         6,050 / 13,338  18.0 / 59.0





Comeup 12V Automotive Winch
Built for strength and reliability, the Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most. Ideal for off-road vehicles, trucks, and SUVs, this winch features a heavy-duty motor, rugged construction, and precise control for smooth, safe operation. Whether you’re stuck in mud, snow, or rocky terrain, the Comeup winch ensures you’re always ready to pull through.





Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Weight 170 lbs
Dimensions 29 × 10 × 20 in
