ComeUp Winch | DV-12S LITE 12V | DV premium Series | Synthetic Rope

$1,370.00
Specifications
  • Rated Line Pull 12,000 lbs. (5,443 kg) single line
  • Motor 4.6 hp / 3,430 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 211:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5″x 9″ (63.5 x 227 mm)
  • Control Waterproof remote with thermometric indicator LED w/17′ (5 m) cord
  • Rope Type Synthetic Rope
  • Rope Size 7/16″ x 82′ (11 mm x 25 m)

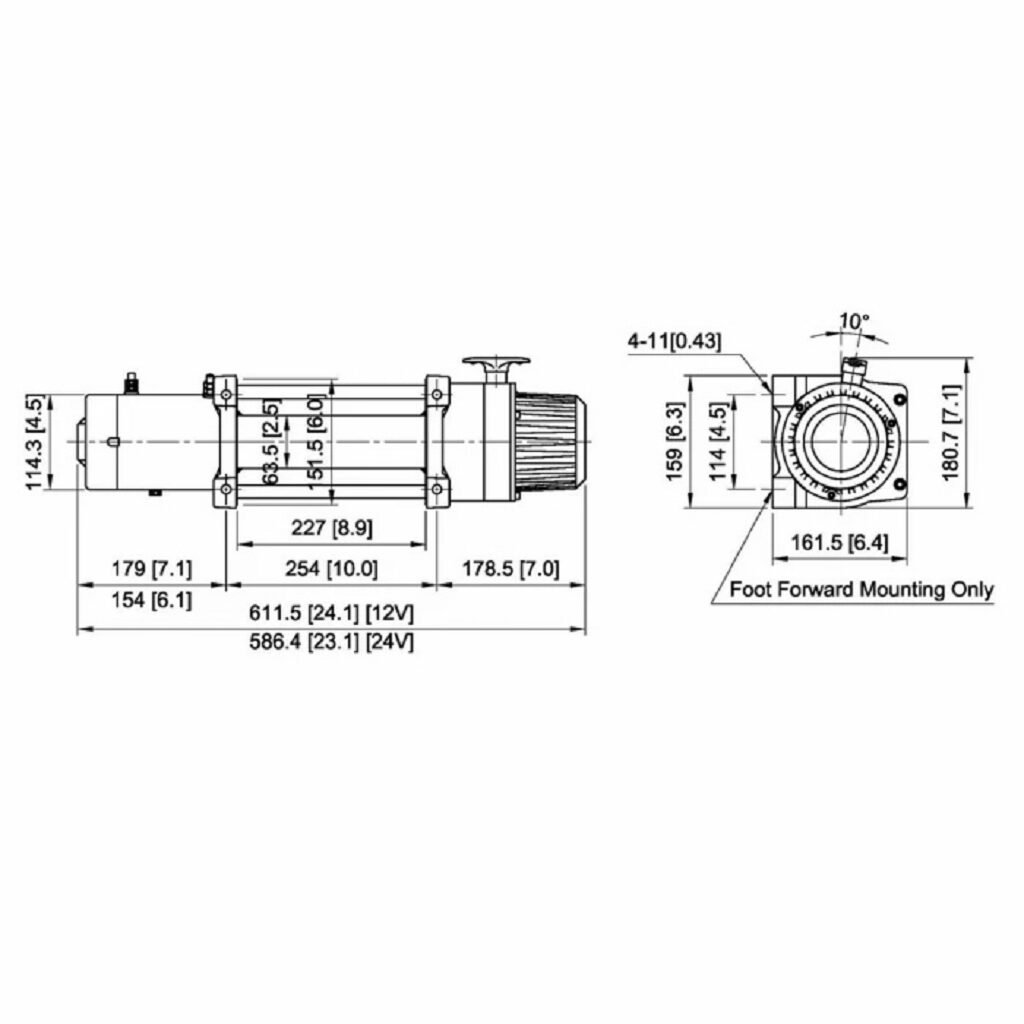

  • Mounting Bolt Pattern 10″ x 4.5″ (254 x 114 mm)
  • Winch Weight 66.1 lbs. (30 kg)
  • Gross Weight 79.4 lbs. (36 kg)
  • Box Dimensions 25.6″x 7.7″ x 16.3″(650 x 192 x 415 mm)
Guaranteed Safe Checkout
Image Safe Checkout
  • Worldwide shipping & Pick-Up and Drop-Off in upper 48 USA states
SKU: 850112 Categories: , , , Brand:

ComeUp Winch | DV-12S LITE 12V | DV premium Series | Synthetic Rope

ComeUp DV Premium Series Winch – Heavy-Duty Performance for Serious Off-Roaders

The ComeUp DV Premium Series winch is engineered for ultimate reliability and power, making it the top choice for off-road enthusiasts, overlanders, and recovery professionals. With pulling capacities ranging from 6,000 to 15,000 lbs., this series features a waterproof IP68-rated motor, advanced dual-cone braking system, and options for synthetic rope or steel cable. The DV Premium Series also includes wireless and wired remotes, a relocatable control box, and a compact design for flexible mounting. Whether you’re tackling tough trails or need dependable recovery gear, the ComeUp DV Premium Series delivers unmatched performance and durability.



Part Number 850112

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull (kg / lb.)    Line Speed, (mpm / fpm)        Amp. Draw, A

No load               8.3 / 26.9             50

1,814 / 4,000     3.1 / 10.2              120

3,629 / 8,000     1.6 / 5.1               230

4,536 / 10,000  1.2 / 4.0                290

5,443 / 12,000  1.0 / 3.3                350



Line Pull and Rope Capacity:

Layer of Rope     Pull by layer (kg / lb.)          Total Rope on the Drum (m / ft.)

1st          5,443 / 12,000  4.7 / 15.5

2nd        4,319 / 9,522     10.8 / 35.5

3rd         3,580 / 7,893     18.3 / 60.1

4th         3,056 / 6,737     25.0 / 82.0



Comeup 12V Automotive Winch
Built for strength and reliability, the Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most. Ideal for off-road vehicles, trucks, and SUVs, this winch features a heavy-duty motor, rugged construction, and precise control for smooth, safe operation. Whether you’re stuck in mud, snow, or rocky terrain, the Comeup winch ensures you’re always ready to pull through.





Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Weight 80 lbs
Dimensions 26 × 8 × 16 in
