ComeUp Winch | DV-9s 12V | Synthetic Rope | DV premium Series

$1,180.00
Specifications
  • Rated Line Pull 9,000 lbs. (4,082 kg) single line
  • Motor 4.6 hp / 3,430 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 156:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5″ x 8.9″ (63.5 x 227 mm)
  • Control Waterproof remote with thermometric indicator LED w/17′ (5 m) cord
  • Rope Type Synthetic Rope
  • Rope Size 3/8″ x 100′ (10 mm x 30.5 m)

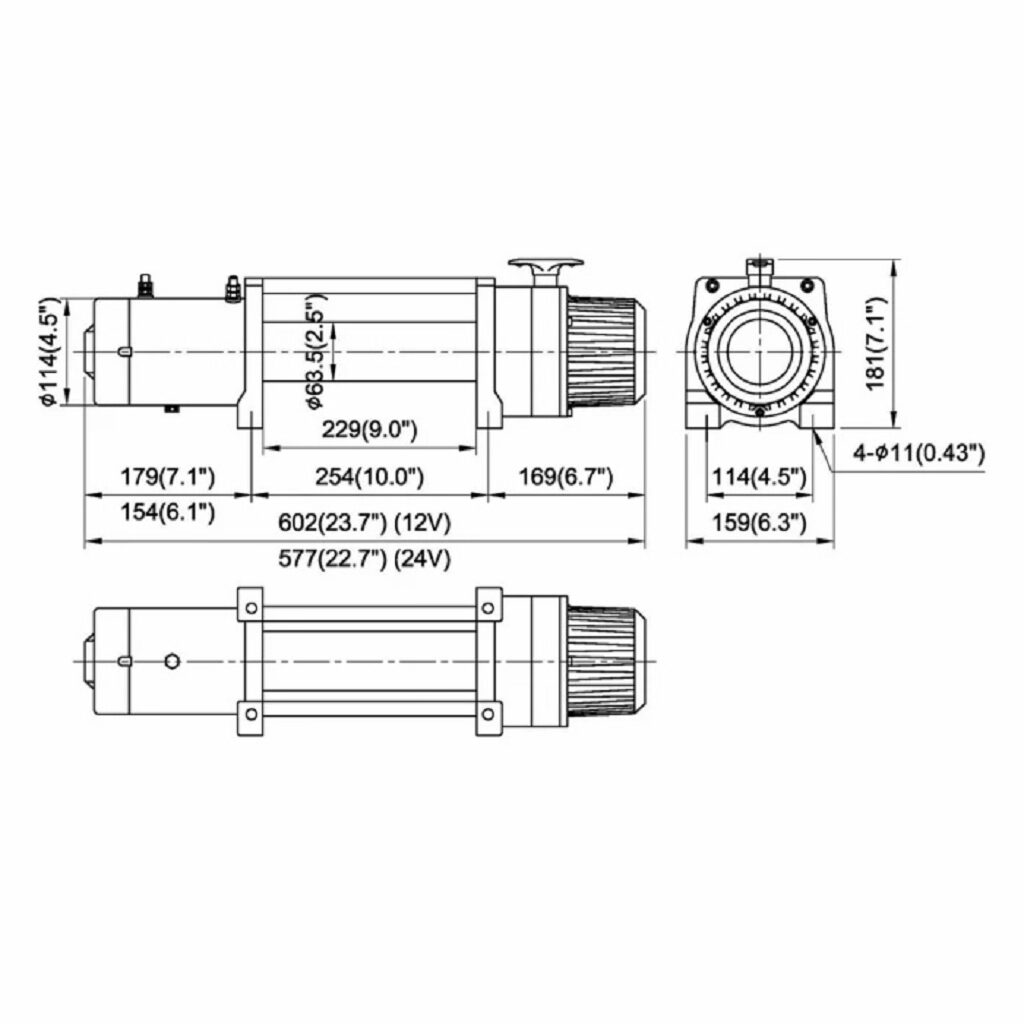

  • Mounting Bolt Pattern 10″ x 4.5″ (254 x 114 mm)
  • Winch Weight 59.5 lbs. (27.0 kg)
  • Gross Weight 72.8 lbs. (33.0 kg)
  • Box Dimensions 25.6″ x 7.7″ x 16.3″ (650 x 192 x 415 mm)
Guaranteed Safe Checkout
Image Safe Checkout
  • Worldwide shipping & Pick-Up and Drop-Off in upper 48 USA states
SKU: 859112 Categories: , , , Brand:

ComeUp Winch | DV-9s 12V | Synthetic Rope | DV premium Series

ComeUp DV Premium Series Winch – Heavy-Duty Performance for Serious Off-Roaders

The ComeUp DV Premium Series winch is engineered for ultimate reliability and power, making it the top choice for off-road enthusiasts, overlanders, and recovery professionals. With pulling capacities ranging from 6,000 to 15,000 lbs., this series features a waterproof IP68-rated motor, advanced dual-cone braking system, and options for synthetic rope or steel cable. The DV Premium Series also includes wireless and wired remotes, a relocatable control box, and a compact design for flexible mounting. Whether you’re tackling tough trails or need dependable recovery gear, the ComeUp DV Premium Series delivers unmatched performance and durability.



Part Number 859112

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull (kg / lb.)    Line Speed, (mpm / fpm)        Amp. Draw, A

No load                13.2 / 43.3           55

907 / 2,000        4.7 / 15.3              110

1,814 / 4,000     3.4 / 11.2               200

2,722 / 6,000     2.8 / 9.1                230

3,629 / 8,000     2.3 / 7.6               260

4,082 / 9,000     2.0 / 6.5               350



Line Pull and Rope Capacity:

Layer of Rope     Pull by layer (kg / lb.)          Total Rope on the Drum (m / ft.)

1st          4,802 / 9,000     5.5 / 18.1

2nd        3,316 / 7,310     12.5 / 41.0

3rd         2,792 / 6,154     20.9 / 68.6

4th         2,410 / 5,314     30.5 / 100



Comeup 12V Automotive Winch
Built for strength and reliability, the Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most. Ideal for off-road vehicles, trucks, and SUVs, this winch features a heavy-duty motor, rugged construction, and precise control for smooth, safe operation. Whether you’re stuck in mud, snow, or rocky terrain, the Comeup winch ensures you’re always ready to pull through.





Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Weight 73 lbs
Dimensions 26 × 8 × 17 in
