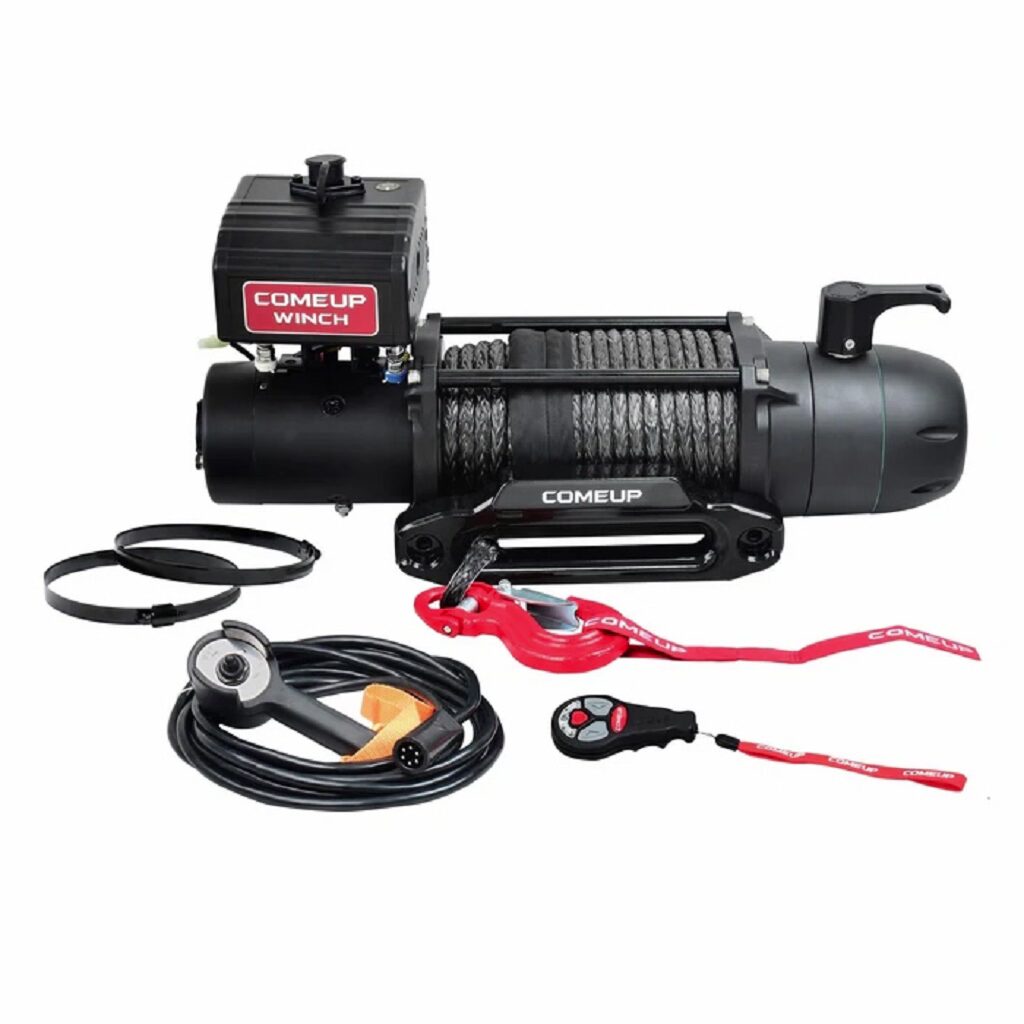

ComeUp Winch – SEAL Slim 12.5RS 12V | With Synthetic Rope & Wireless Remote
Comeup_12v_Winch_Slim_125lb_B
Comeup_12v_Winch_Slim_125lb_C
Comeup_12v_Winch_Slim_125lb_A
Comeup_12v_Winch_Slim_125lb_B
Comeup_12v_Winch_Slim_125lb_C

ComeUp Winch – SEAL Slim 12.5RS 12V | With Synthetic Rope & Wireless Remote

$1,680.00
Specifications
  • Rated Line Pull 12,500 lbs. (5,670 kg) single line
  • Motor 5.0 hp / 3,730 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 225:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5″ x 9″ (63.5 x 228 mm)
  • Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17′ (5 m) cord
  • Rope Type Synthetic Rope
  • Rope Size 7/16″ x 82′ (11 mm x 25 m)

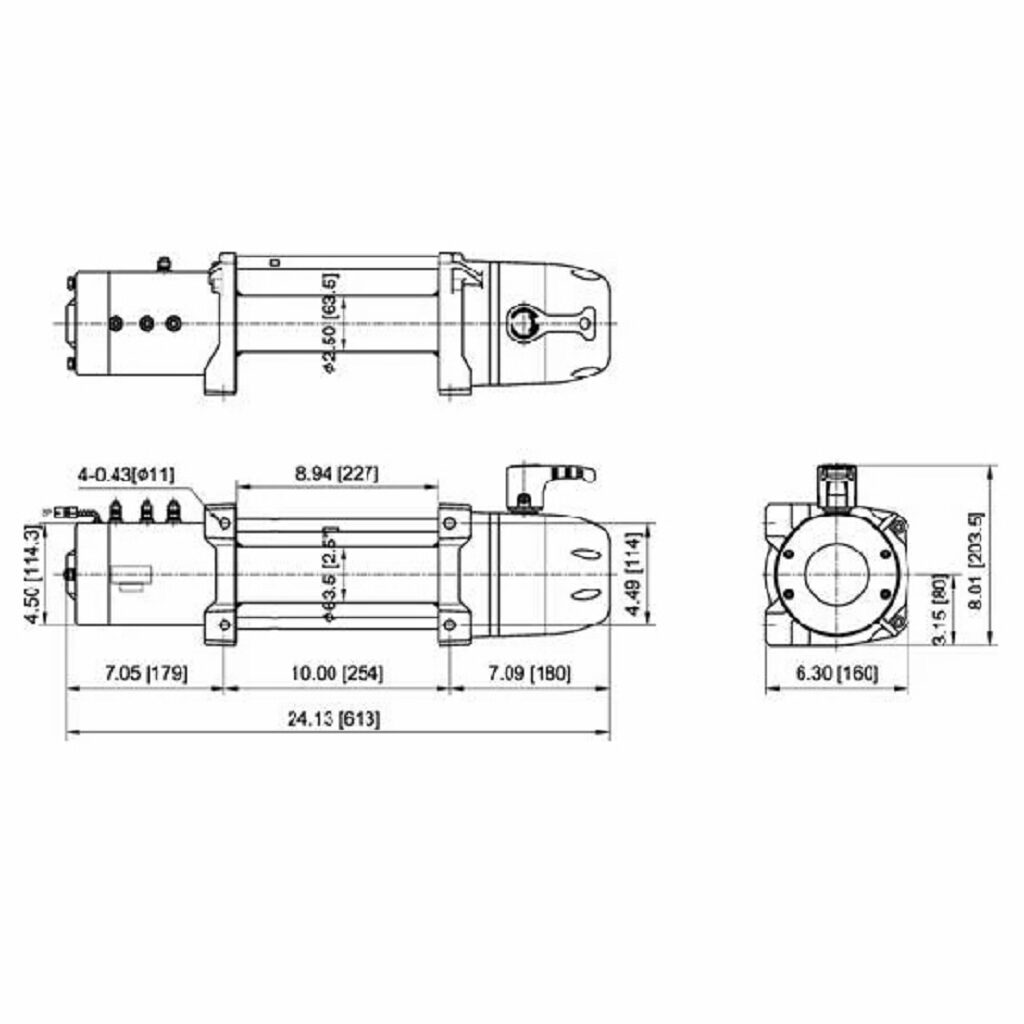

  • Mounting Bolt Pattern 10″ x 4.5″ (254 x 114 mm)
  • Winch Weight 61.7 lb (28 kg)
  • Gross Weigh 89.1 lb (40.5 kg)
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 26.9″ x 8.2″ x 16.9″ (682 x 209 x 430 mm )
Guaranteed Safe Checkout
Image Safe Checkout
  • Worldwide shipping & Pick-Up and Drop-Off in upper 48 USA states
SKU: 295057 Categories: , , , Brand:

ComeUp Winch – SEAL Slim 12.5RS 12V | With Synthetic Rope & Wireless Remote

Comeup 12V Winch. Built for strength and reliability, Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most

Part Number 295057



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull (kg / lb.)    Line Speed, (mpm / fpm)        Amp. Draw, A

No load                7.7 / 25.3            45

907 / 2,000        3.4 / 11.2             75

1,814 / 4,000     2.5 / 8.2               160

2,722 / 6,000     2.0 / 6.6               230

3,629 / 8,000     1.7 / 5.6               300

5,670 / 12,500  0.9 / 3.0               470



Line Pull and Rope Capacity:

Layer of Rope     Pull by layer (kg / lb.)          Total Rope on the Drum (m / ft.)

1st          5,670 / 12,500  4.8 / 15.7

2nd        4,499 / 9,919     10.9 / 35.7

3rd         3,729 / 8,221     18.5 / 60.7

4th         3,184 / 7,020     25.0 / 82.0





Comeup 12V Automotive Winch
Built for strength and reliability, the Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most. Ideal for off-road vehicles, trucks, and SUVs, this winch features a heavy-duty motor, rugged construction, and precise control for smooth, safe operation. Whether you’re stuck in mud, snow, or rocky terrain, the Comeup winch ensures you’re always ready to pull through.





Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Weight 90 lbs
Dimensions 27 × 8 × 17 in
