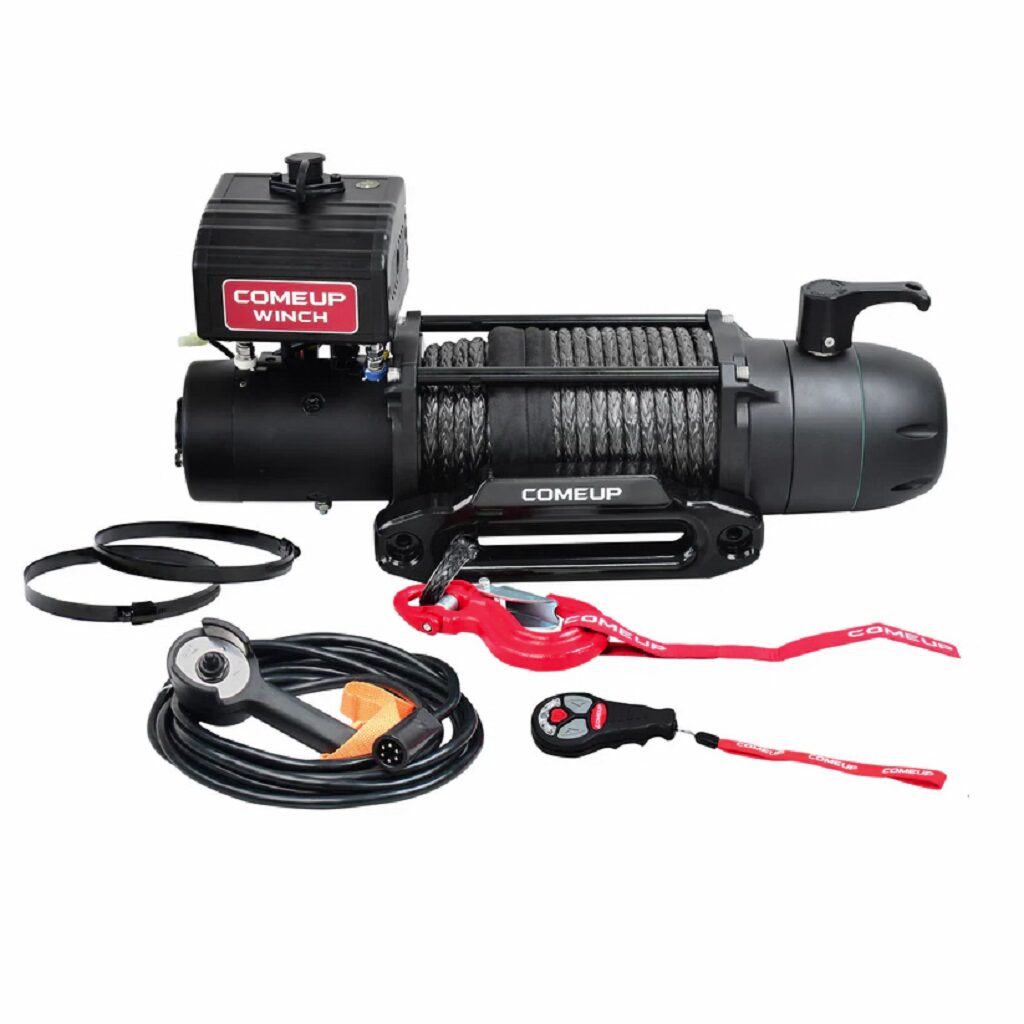

ComeUp Winch – SEAL Slim 9.5RS 12V | With Synthetic Rope & Wireless Remote
Comeup_Winch_SealSlim_9.5rs_12V

ComeUp Winch – SEAL Slim 9.5RS 12V | With Synthetic Rope & Wireless Remote

$1,460.00
Specifications
  • Rated Line Pull 9,500 lbs. (4,309 kg) single line
  • Motor 5.0 hp / 3,730 w 12V Series Wound
  • Gear Ratio 3-Stage Planetary 159:1
  • Clutch (freespooling) Rotating Ring Gear
  • Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
  • Winch Construction Aluminum Die Cast Housing with Steel Drum
  • Drum Size 2.5″ x 9″ (63.5 x 228 mm)
  • Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17′ (5 m) cord
  • Rope Type Synthetic rope
  • Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components
  • Box Dimensions 26.9″ x 8.2″ x 16.9″ (682 x 209 x 430 mm )
Guaranteed Safe Checkout
Image Safe Checkout
  • Worldwide shipping & Pick-Up and Drop-Off in upper 48 USA states
SKU: 295051 Categories: , , , Brand:

ComeUp Winch – SEAL Slim 9.5RS 12V | With Synthetic Rope & Wireless Remote

Comeup 12V Winch. Built for strength and reliability, Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most

Part Number 295051



Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull (kg / lb.)    Line Speed, (mpm / fpm)        Amp. Draw, A

No load               14.8 / 48.6           60

907 / 2,000        4.8 / 15.7             115

1,814 / 4,000     3.6 / 11.8              210

2,722 / 6,000     2.8 / 9.2               245

3,629 / 8,000     2.3 / 7.6               280

4,309 / 9,500     2.2 / 7.2               380



Line Pull and Rope Capacity:

Layer of Rope     Pull by layer (kg / lb.)          Total Rope on the Drum (m / ft.)

1st          4,309 / 9,500     5.1 / 16.7

2nd        3,472 / 7,655     11.7 / 38.4

3rd         2,908 / 6,410     19.7 / 64.6

4th         2,501 / 5,514     30.5 / 100





Comeup 12V Automotive Winch
Built for strength and reliability, the Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most. Ideal for off-road vehicles, trucks, and SUVs, this winch features a heavy-duty motor, rugged construction, and precise control for smooth, safe operation. Whether you’re stuck in mud, snow, or rocky terrain, the Comeup winch ensures you’re always ready to pull through.





Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Weight 77 lbs
Dimensions 27 × 8 × 17 in
