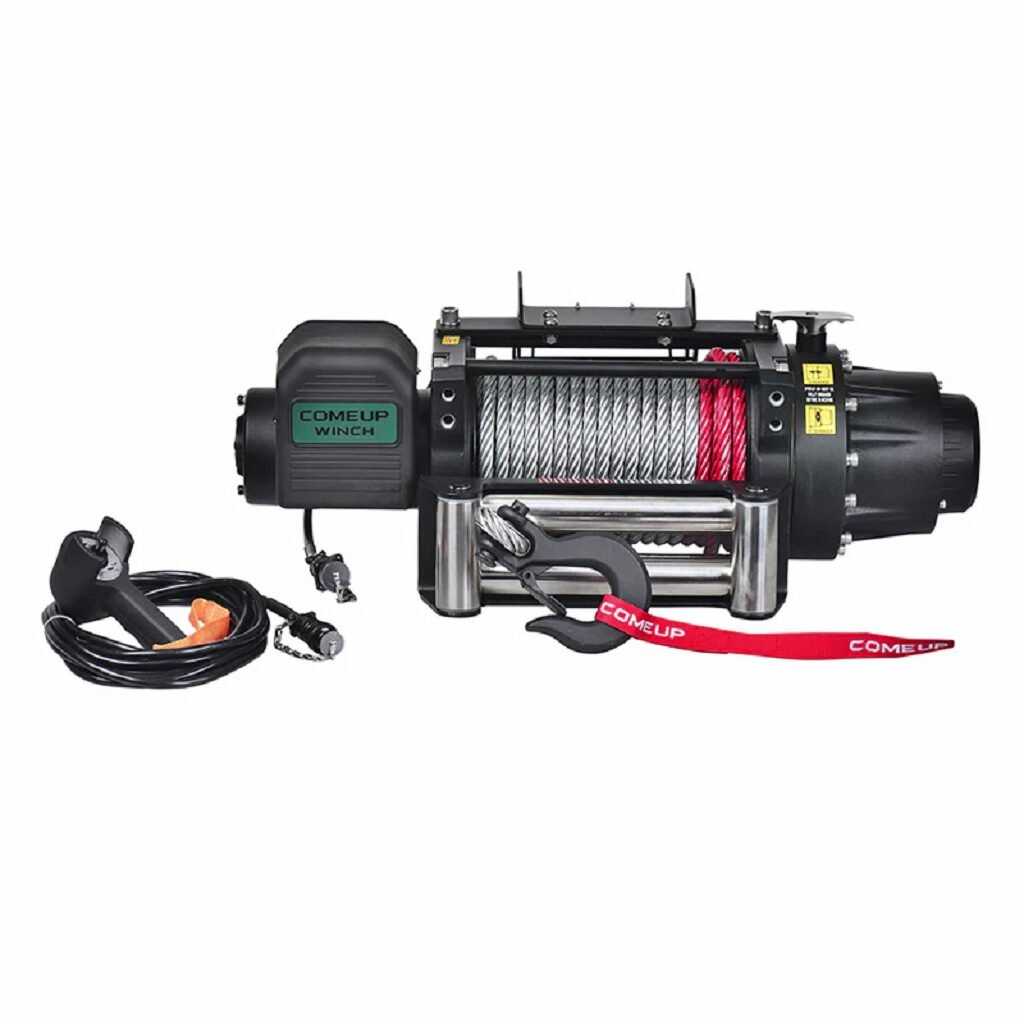

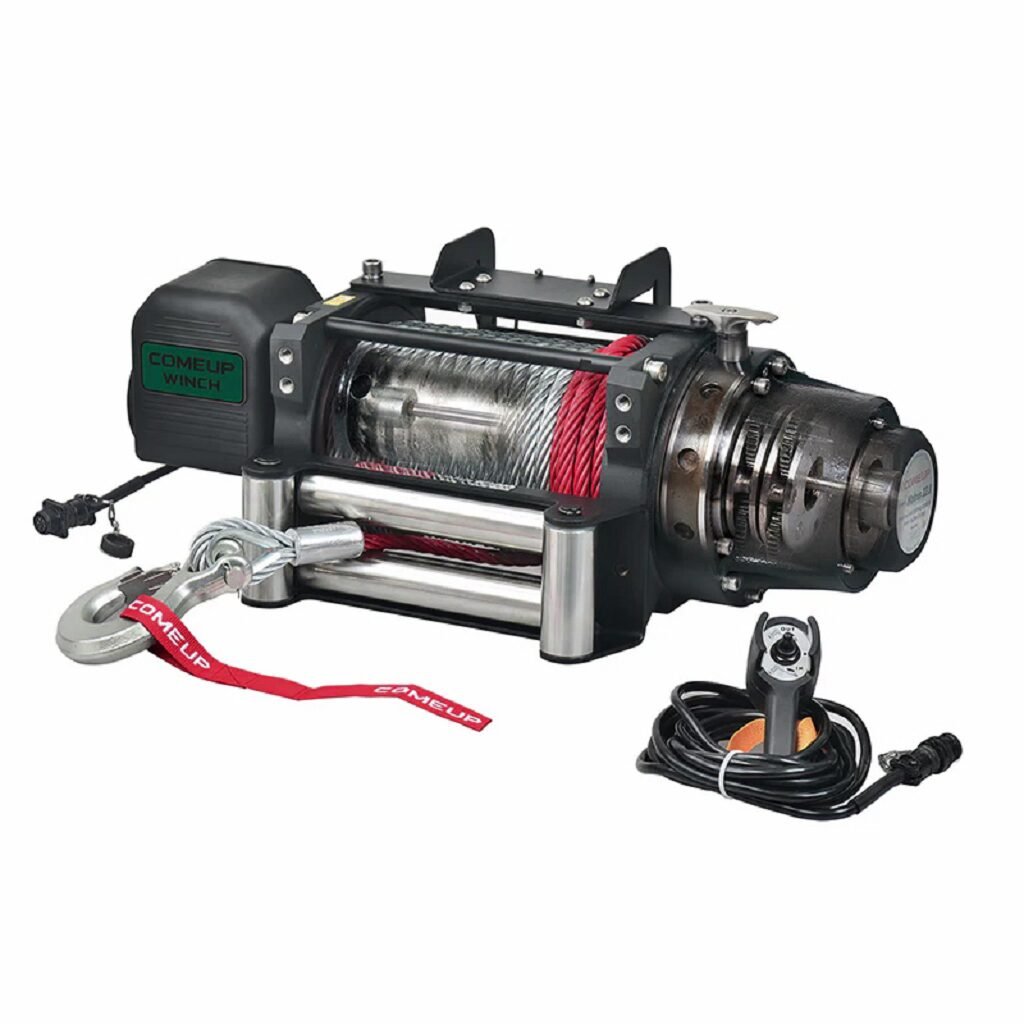

ComeUp Winch | WALRUS 18 12V | WALRUS IP68 Waterproof Series
ComeUp_Winch_WALRUS_18_12V_WALRUS_IP68_Waterproof_Series_B
ComeUp_Winch_WALRUS_18_12V_WALRUS_IP68_Waterproof_Series_C
ComeUp_Winch_WALRUS_18_12V_WALRUS_IP68_Waterproof_Series_A
ComeUp_Winch_WALRUS_18_12V_WALRUS_IP68_Waterproof_Series_B
ComeUp_Winch_WALRUS_18_12V_WALRUS_IP68_Waterproof_Series_C

ComeUp Winch | WALRUS 18 12V | WALRUS IP68 Waterproof Series

$3,035.00
Specifications
  • Rated line pull: 8,165 kg / 18,000 lb single line
  • Line speed ( 1st layer): 5.2 mpm / 17.1 fpm 45 A at 12V, 7.0 mpm / 23 fpm 35 A at 24V no load
  • 0.8 mpm / 2.6 fpm 320 A at 12V, 1.7 mpm / 5.6 fpm 210 A at 24V full load
  • Motor: 5,220 w / 7.0 hp 12V series wound
  • 4,474 w / 6.0 hp 24V series wound
  • Gear train: 3-stage planetary 343:1
  • Clutch (freespooling): Rotating ring gear
  • Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
  • Winch construction: Aluminum die cast housings with steel drum
  • Drum size: 89 mm x 204L mm (3.5″ x 8″L)
  • Control: Waterproof remote with thermometric indicator LED w/ 5 m (17′) cord
  • Rope type: 6 ร— 29 – IWRC (Breaking strength 100.7 kN)
  • Rope size: 11.1 mm x 27 m (7/16โ€ x 89โ€™)
  • Mounting bolt pattern: 254 mm x 114.3 mm (10โ€ x 4.5โ€)
  • 254 mm x 165 mm (10″ x 6.5″)
  • Mounting: Foot forward mounting only
  • * NOTE: Only foot forward mounting can meet SAE J706
Guaranteed Safe Checkout
Image Safe Checkout
  • Worldwide shipping & Pick-Up and Drop-Off in upper 48 USA states
SKU: 281800 Categories: , , , Brand:

ComeUp Winch | WALRUS 18 12V | WALRUS IP68 Waterproof Series

The ComeUp WALRUS 18 is a 12-volt electric winch engineered for extreme performance in the harshest environments. Part of the rugged WALRUS IP68 Waterproof Series, this winch delivers 18,000 lbs of pulling power, making it ideal for heavy-duty recovery, off-road trucks, utility vehicles, and industrial applications.



Part Number 281800

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull (kg / lb.)ย  ย  Line Speed, (mpm / fpm)ย  ย  ย  ย  Amp. Draw, A

No loadย  ย  ย  ย  ย  ย  ย  ย  ย 5.2 / 17.1ย ย ย ย ย ย ย ย ย ย ย  45

2,268 / 5,000ย ย ย ย  2.5 / 8.2ย  ย  ย  ย  ย  ย  ย  110

4,536 / 10,000ย  1.6 / 5.2ย ย ย ย ย ย ย ย ย ย ย ย ย ย  190

6,804 / 15,000ย  1.2 / 3.9ย ย ย ย ย ย ย ย ย ย ย ย ย ย  240

8,165 / 18,000ย  0.8 / 2.6ย ย ย ย ย ย ย ย ย ย ย ย ย ย  320



Line Pull and Rope Capacity:

Layer of Ropeย ย ย ย  Pull by layer (kg / lb.)ย  ย  ย  ย  ย  Total Rope on the Drum (m / ft.)

1stย ย ย ย ย ย ย ย ย  8,165 / 18,000ย  5.6 / 18.3

2ndย ย ย ย ย ย ย  6,683 / 14,733ย  12.4 / 40.6

3rdย ย ย ย ย ย ย ย  5,656 / 12,469ย  20.4 / 67

4thย ย ย ย ย ย ย ย  4,903 / 10,809ย  27 / 89



Comeup 12V Automotive Winch
Built for strength and reliability, the Comeup 12V Automotive Winch delivers powerful recovery performance when you need it most. Ideal for off-road vehicles, trucks, and SUVs, this winch features a heavy-duty motor, rugged construction, and precise control for smooth, safe operation. Whether you’re stuck in mud, snow, or rocky terrain, the Comeup winch ensures youโ€™re always ready to pull through.
