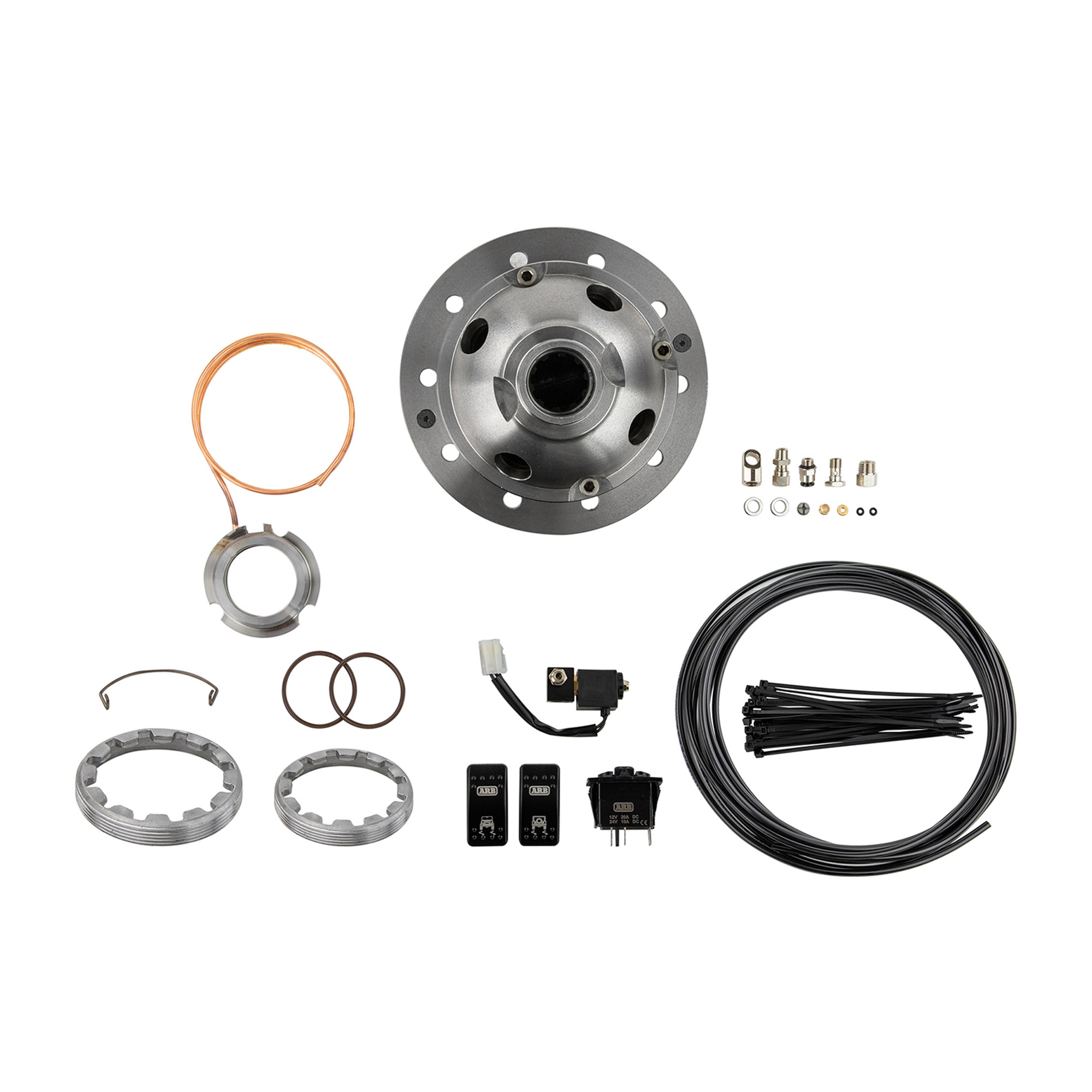

ARB AIR LOCKER DIFFERENTIAL | Land Rover, 10 SPL, Banjo | RD127

Specifications

SKU: RD127.

Weight: 23.00 lbs.

Differential: Land Rover.

Position: Front.

Ratio: 3.54.

Axle Splines: 10.

Shaft Diameter: 1.11″.

Dimensions (L x W x H): 10.63 x 10.63 x 11.02 inches.

UPC: 881348008077.

Overview

The world’s premier traction aid, an ARB Air Locker keep you moving in all conditions. With the flick of the switch an Air Locker gives instant lock at any moment and its super strong design allows activation at any speed allowing you to tackle the toughest terrain. The advantage of the Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the internal differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates like a conventional open differential. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact.

Downloads

Check ARB Air Locker Application Guide for perfect Fitment  – ARB 4×4 Accessories – Air Locker Application Guide

RD127 Manual  – ARB_RD127_Installation Guide

*Suits the shimmed type third member (not the early adjuster nut type) which can be visually identified by the Dana logo cast into the third member between the two finds of the right hand side.
**Models equipped with OE locking diff (LRD) require axles with non-OE LRD axles.

Fitment

Year       Make    Model   Sub-model           Liter       Cylinders             Fuel type             Doors

1970-1974            Land Rover         Land Rover         Base      2.3          4              DIESEL   2

1970-1974            Land Rover         Land Rover         Base      2.3          4              DIESEL   U/K

1970-1974            Land Rover         Land Rover         Base      2.3          4              GAS       2

1970-1974            Land Rover         Land Rover         Base      2.3          4              GAS       U/K

1970-1974            Land Rover         Land Rover         Base      2.6          6              GAS       2

1970-1974            Land Rover         Land Rover         Base      2.6          6              GAS       U/K

1989-1992            Land Rover         Range Rover       Base      3.9          8              GAS       4

1989-1990            Land Rover         Range Rover       County 3.9          8              GAS       4

1987-1988            Land Rover         Range Rover       Base      3.5          8              GAS       4

1988       Land Rover         Range Rover       40th Anniversary Edition               3.5          8              GAS       4

1989       Land Rover         Range Rover       Hunter  3.9          8              GAS       4

1991       Land Rover         Range Rover       Great Divide       3.9          8              GAS       4

1991       Land Rover         Range Rover       Hunter  3.9          8              GAS       4

1991       Land Rover         Range Rover       County SE            3.9          8              GAS       4

1992       Land Rover         Range Rover       County 3.9          8              GAS       4

1992       Land Rover         Range Rover       LSE         3.9          8              GAS       4

1993       Land Rover         Range Rover       County LWB        4.2          8              GAS       4

1993       Land Rover         Range Rover       Sport     3.9          8              GAS       4

1993       Land Rover         Range Rover       County 3.9          8              GAS       4

1993       Land Rover         Defender 110     Base      3.9          8              GAS       4
