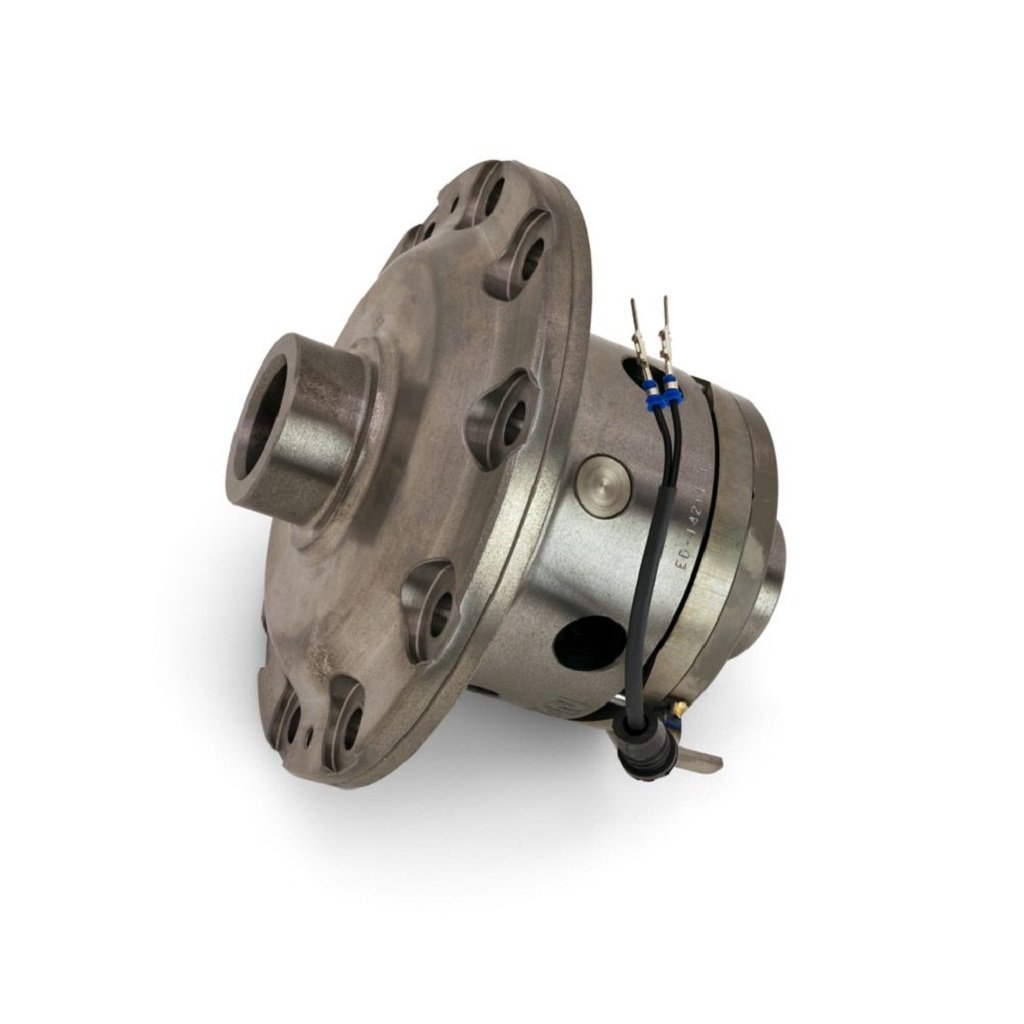

Eaton Elocker | Toyota Land Cruiser 80 / 105 | 8″ Front 30 Spline Axles | 50MM Bearing

The Eaton ELocker is an electronic, selectable differential for drivers that want full control and traction on demand.

Specs

Part Number: 14211-1

Traction Type: Eaton ELocker

Carrier Break: All Gear Ratios

Differential: Toyota 8 Inch

Vehicle Fitment

• 1990 – 1997         Toyota Land Cruiser 80 – Front
• 1998 – 2007        Toyota Land Cruiser 105 – Front
• 1990 – 2015         Toyota Land Cruiser 70 – Front
• 1984 – 2009        Toyota  4Runner
• 2007 – 2009       Toyota  FJ Cruiser
• 2016 – 2024        Toyota  Tacoma
• 1996 – 2002        Toyota Prado 90
• 2003 – 2009        Toyota Prado 120
• 1979 – 1985          Toyota Pickup

Please Check EATON Application Guide PDF

Operation

Under normal conditions, the ELocker performs as an open differential. When an obstacle is encountered, a rocky trail, muddy ditch or other challenge, the driver presses a dashboard switch. The electromagnetic mechanism then locks, sending 100% of the available torque to both wheels equally. A second press of the switch deactivates the unit to resume normal driving.

Performance

ELocker internal gears are net-forged, providing the strength and durability necessary for off-road and recreational driving. Its electronic control also provides added reliability over similar air-controlled products.

Lubrication

Most gear oils are sufficient: a quality, petroleum-mineral based oil is recommended. Synthetic oils and friction modifiers can also be used, but are not necessary. In cold weather conditions, a lower viscosity gear oil (equivalent to API GL-5 75W-90) is recommended.

Features

• Driver controlled push-button operation
• Positive-electronic locking mechanism
• Net-forged gears for maximum strength and durability
• Sends all available torque to both wheels equally upon driver command, providing maximum traction to overcome challenging terrain
• Eaton NGR locking rocker switch and wiring harness included
