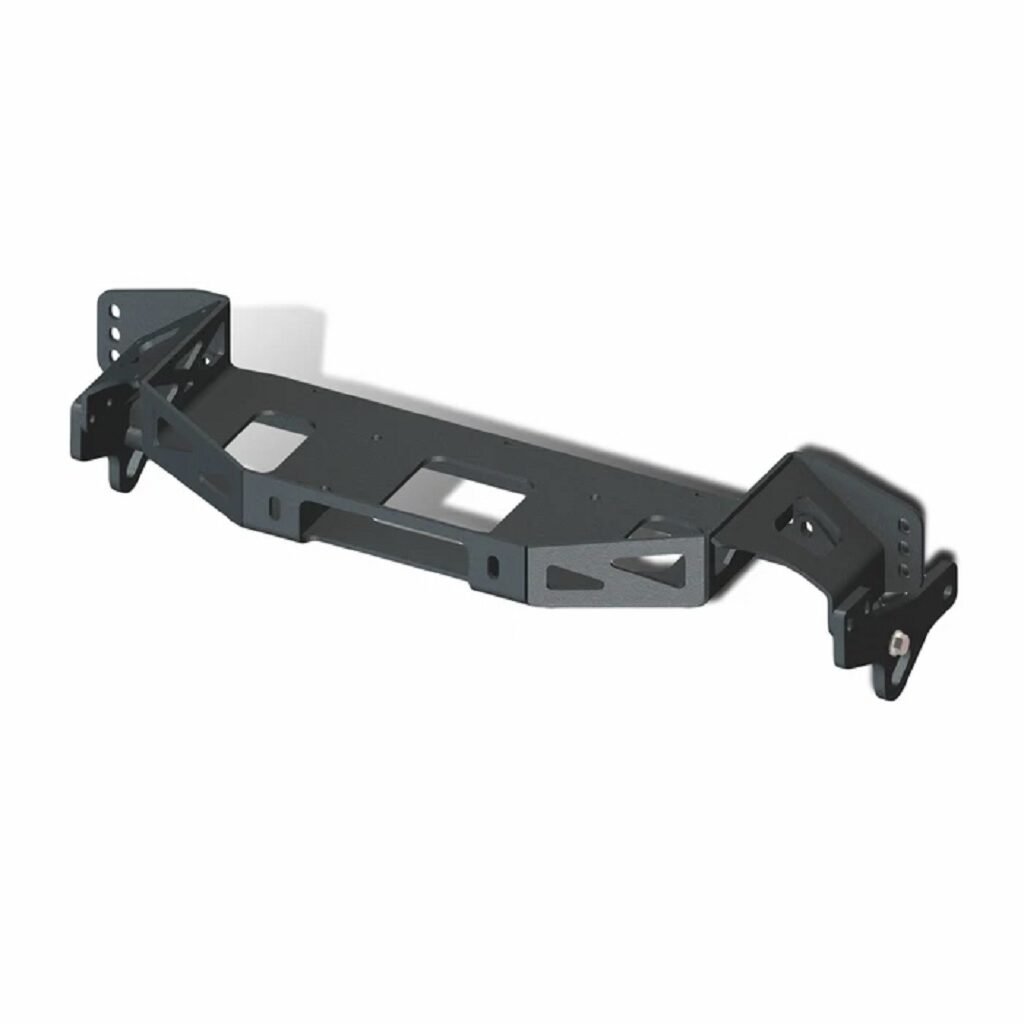

Toyota 4Runner (5th Gen) | 2010-2024 | Hidden Winch Mount
$789.95
KEY FEATURES:
- Robust Construction: Fabricated from ¼” thick mild steel, ensuring durability and strength.
- Integrated Recovery Points: Features two built-in recovery points for added functionality.
- Triangulated Strength: Mounting points designed for superior strength and durability.
- Support Brackets: Includes ½” thick steel plate support brackets, further enhancing stability.
- Side Load Brackets: ¼” thick steel plate side load brackets augment the support by creating additional frame attachment points.
- Finish: Coated with textured black powder-coat for longevity and corrosion resistance.
- Made in the USA: Proudly designed and manufactured domestically.
- Control Pack Relocation: While relocating the control box, users will need to source their own wires and hardware.
- *The winch mount is tailored around the Warn Zeon series and Warn VR Evo Series winches.
- Weighs 45lbs with hardware
Guaranteed Safe Checkout
- Worldwide shipping & Pick-Up and Drop-Off in upper 48 USA states
Hidden Winch Mount for 2010–2024 Toyota 4Runner (5th Gen)
Transform your 5th Gen Toyota 4Runner into an off-road-ready machine with this hidden winch mount. It delivers full recovery capability while preserving the factory front bumper and original styling.
Key Features and Benefits
OEM-Style Integration

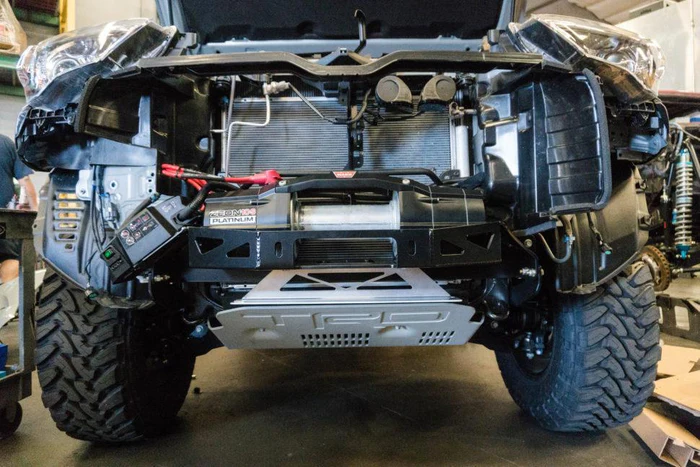

Designed specifically for 2010–2024 4Runners, this winch mount installs behind the factory bumper for a clean, stock appearance.
Heavy-Duty Construction
CNC CAD-designed and built from 1/4″ thick mild steel. Precision bent, MIG-welded, and finished with a durable matte black powder coat for corrosion resistance and long-term strength.
Winch Compatibility
Accepts mid-frame winches such as the Warn Zeon and VR Evo series, supporting up to 12,000 lb capacities for serious recovery.

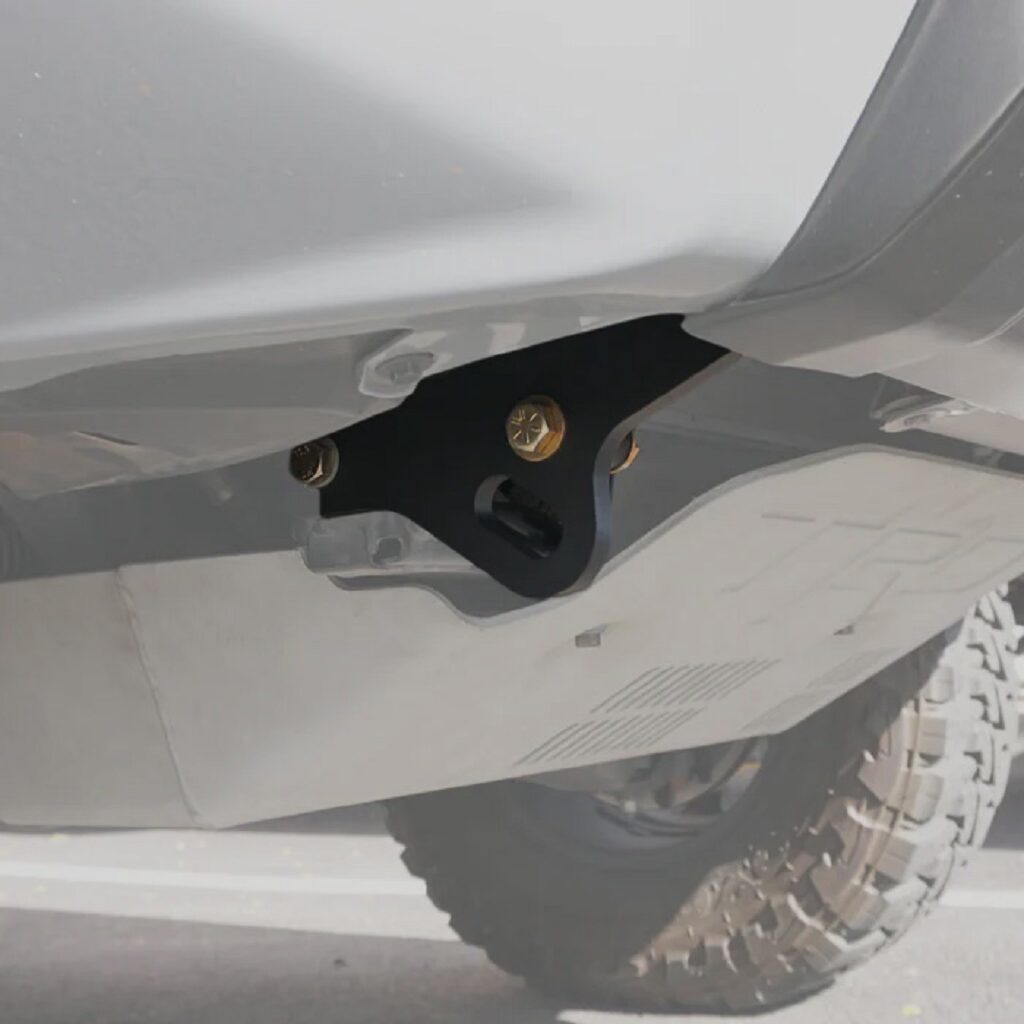

Built-In Recovery Points
Includes integrated recovery points and optional side-load support brackets to safely manage angled pulls.
Reinforced Support System
Comes with 1/2″ thick lower steel support plates and 1/4″ side-load reinforcements for added structural rigidity during winching.

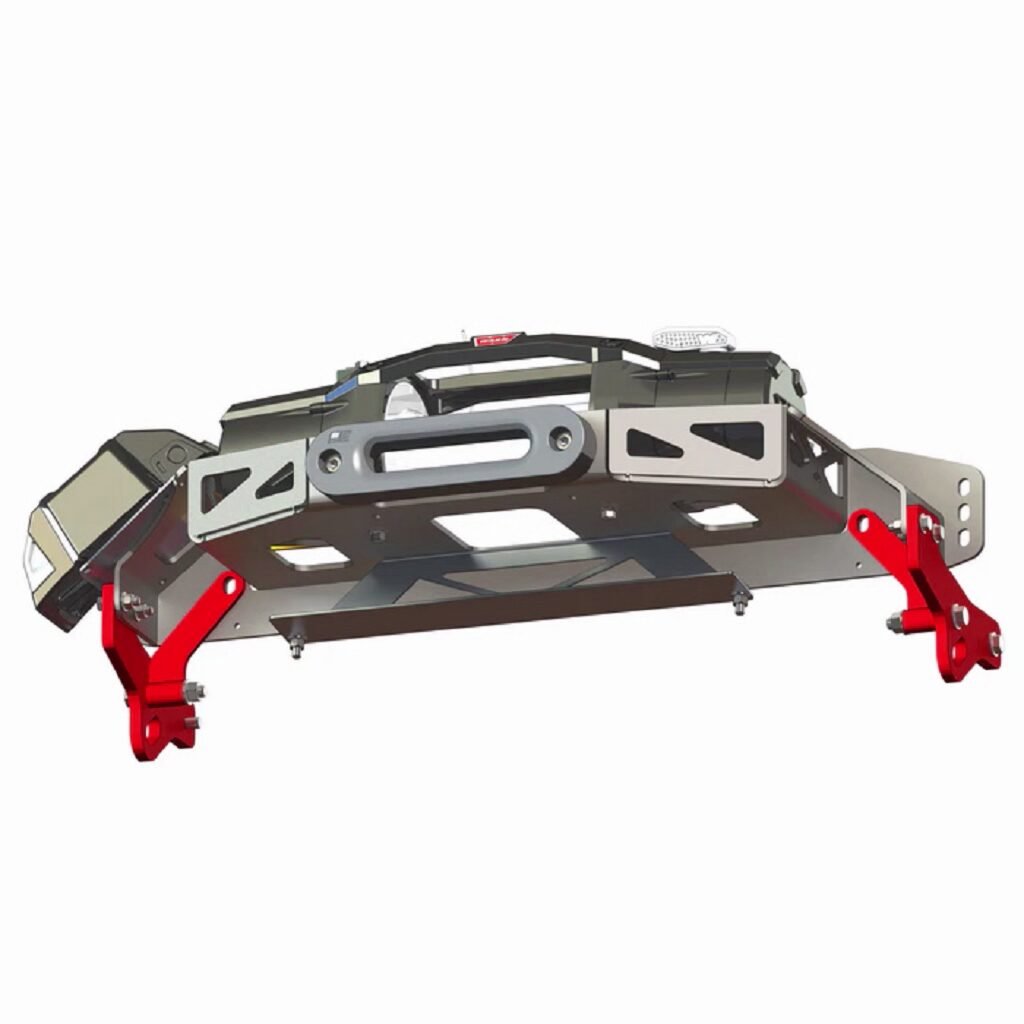

Clean Control Pack Integration
Designed for seamless relocation of the winch control box (bracket sold separately), with no bumper cutting or major modifications required.
Why This Winch Mount?
-

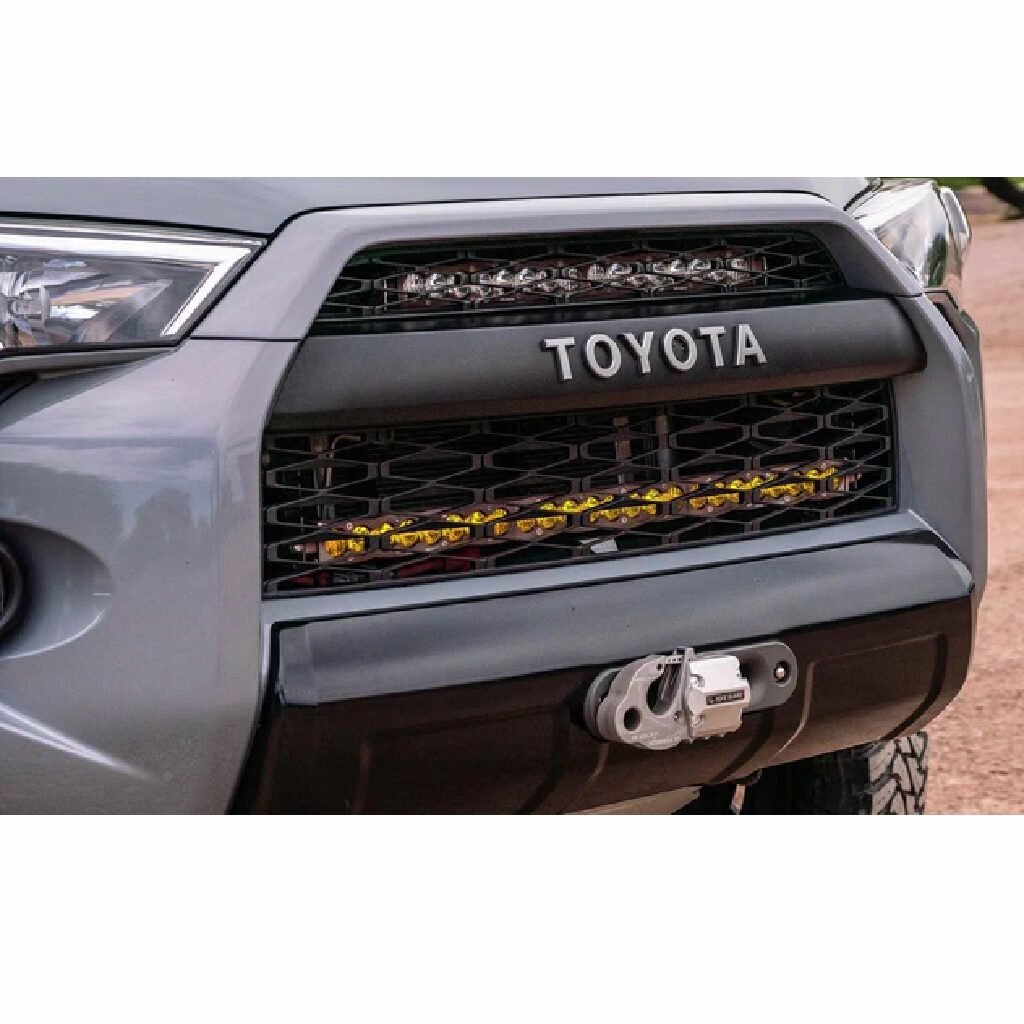

Maintains the clean look of the factory 4Runner bumper
-
Provides reliable, heavy-duty off-road recovery capability
-
Installs using factory frame points—no welding required
-
Optional upgrade kits available for extreme recovery conditions
-
Made in the USA with precise engineering and craftsmanship
Technical Specifications
Vehicle Fitment: Toyota 4Runner (2010–2024, 5th Generation)
Material: 1/4″ mild steel frame, 1/2″ lower supports, 1/4″ side-load reinforcements
Finish: Black powder coat
Mounting Method: Bolt-on installation to factory frame points
Hardware Included: Grade 8 hardware, fairlead cut template, and detailed instructions
Ideal For
Off-road and overland enthusiasts looking for a stealthy, high-performance winch mounting solution without sacrificing the OEM look of their 4Runner. Whether you’re preparing for rugged terrain, solo overlanding, or unexpected trail recovery, this winch mount is built to handle it all.
Prop 65 Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
| Weight | 45 lbs |
|---|
| Make | Model | Year |
|---|---|---|
| Toyota | 4Runner | 2010 - 2024 |
